Bell and Boost Button Fix

Required Tools:

  • Allen/IMBUS 5mm
  • Cutters
  • Soldering station/iron

Step 1

Screenshot 2024-01-31 at 17.18.51.png

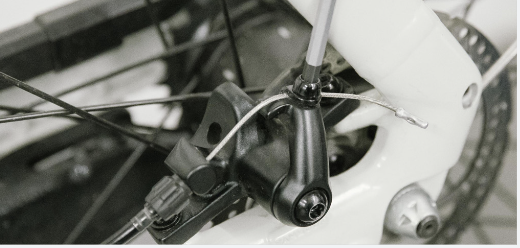

Brake cable needs to be loosened at caliper, undo the bolt with a 5mm allen key (you don’t have to remove the bolt).


Step 2

Screenshot 2024-01-31 at 17.19.06.png

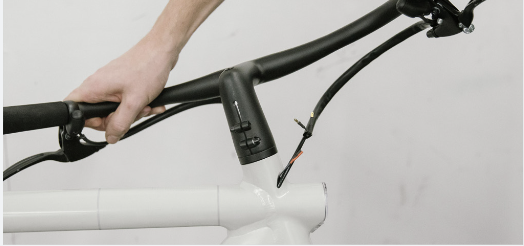

Pull the right brake lever and remove the brake wire from the lever.


Step 3

Screenshot 2024-01-31 at 17.22.07.png

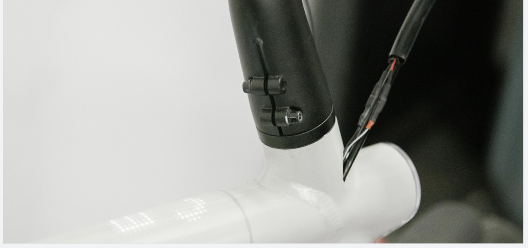

Slide the outer sleeve of the cables up to gain access to the cable.


Step 4

Screenshot 2024-01-31 at 17.22.15.png

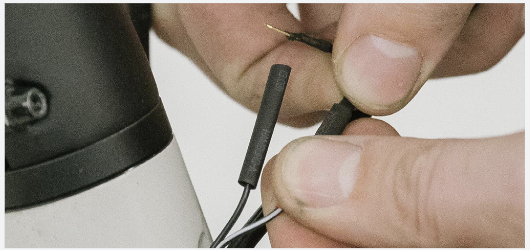

Cut the shrink sleeve open along the length of the cable. Be careful not to cut the cables or yourself.


Step 5

Screenshot 2024-01-31 at 17.22.23.png

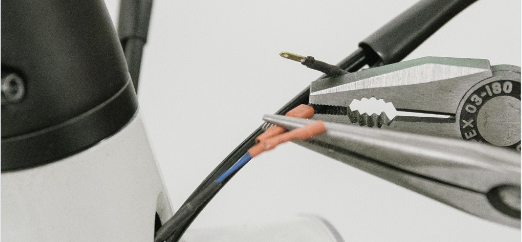

Disconnect the connectors and cut off the connectors on the bike side.


Step 6

Screenshot 2024-01-31 at 17.22.28.png

Strip both cables and connect them with your fingers to check if the wiring is ok (the bike should be switching power levels while bike is on).


Step 7

Screenshot 2024-01-31 at 17.22.33.png

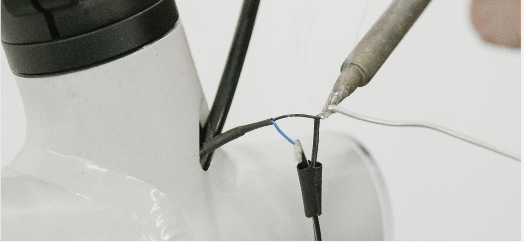

If this is working, solder the non-connector side of the extended cable to the stripped cable on the bike side (if this is not working, bike needs to be shipped to VanMoof).


Step 8

Screenshot 2024-01-31 at 17.22.38.png

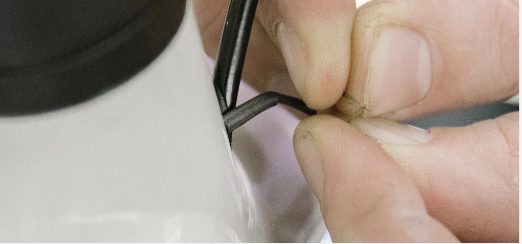

Push the cable in the frame, try to push it down and not back (towards the display). To check if it is pushed in properly, turn the handle bar as far to the left as possible. You should feel a firm stop, compare this with the right side. If it feels soft (damped) reinsert the cable and test again.


Step 9

Screenshot 2024-01-31 at 17.22.43.png

Re-connect the connectors from the extended cable to the connectors on the button side again.


Step 10

Screenshot 2024-01-31 at 17.22.48.png

Test the button (if it switches power levels while the bike is turned on).


Step 11

Screenshot 2024-01-31 at 17.22.55.png

If it works correctly, re-attach the brake cable.


Step 12

Screenshot 2024-01-31 at 17.23.02.png

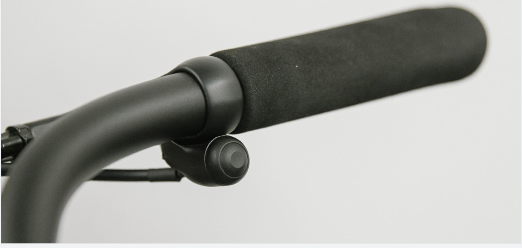

Boost button is extended and fixed.
