Kick Lock Replacement

Required Tools:

  • Stealth lock set
  • Torx-25
  • Anti Theft Locknut tool

Step 1

In order to replace the kick lock, the rear wheel first needs to be removed.

How to remove rear wheel on the VanMoof SX2





Step 2


Push the pin into the locked position and hold with a wrench pipe.



Step 3


Use a size 2 Alan/Hex key to hold the cap of the lock pin.



Step 4


Unscrew the lock pin cap counter clock wise.



Step 5


Unscrew the two safety Torx-25 bolts using the provided tool.



Step 6


Gently remove the stealth lock module out of the frame.



Step 7


Push the wirre  towards the outside of the frame and slide the wire out.



Step 8


Gently pull the connector out until this part of the wire visible.



Step 9

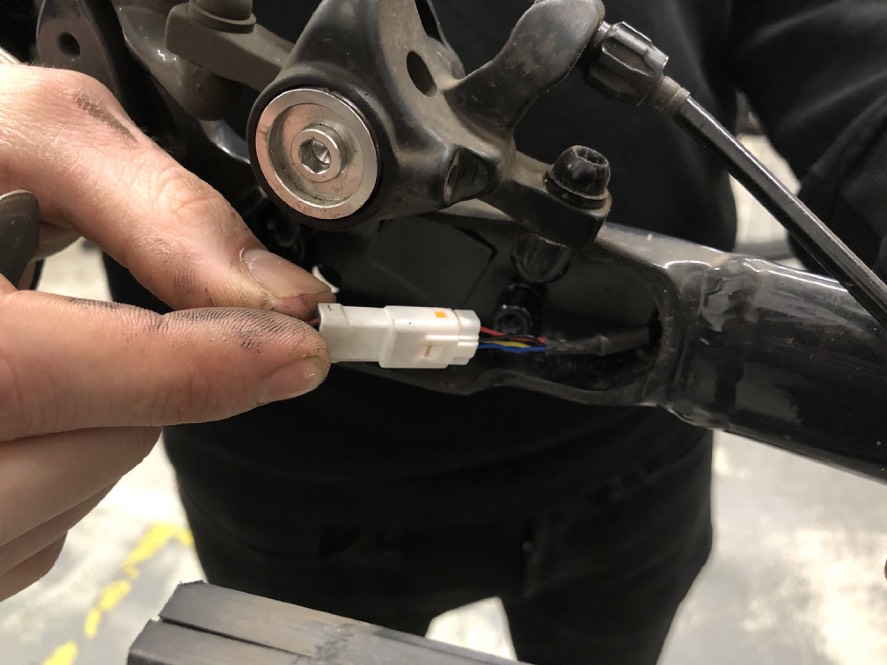

Unplug the connector.



Step 10


Plug the new lock in and test if it works.



Step 11


Mount the new lock. DO NOT over-tighten (5NM max.).



Step 12

Mount the rear wheel.

How to attach rear wheel on the VanMoof SX2
