Cartridge Replacement

Updated

Required Tools

  • Replacement Cartridge
  • Anti-theft Torx key T30
  • Anti-theft Torx key T10

Step 1

Screenshot 2024-02-01 at 14.17.59.png

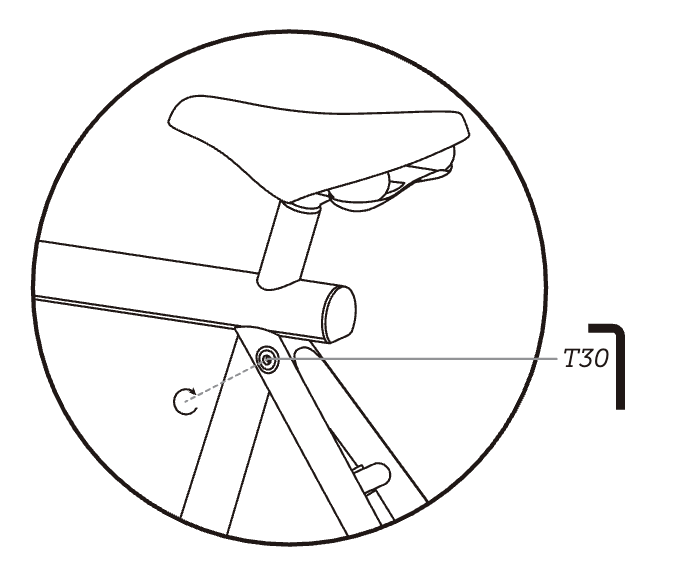

Before the cartridge can be removed from the top tube, the seat post needs to be removed. Release the seat post clamp using the Torx T30 key and remove the seat post and saddle.



Step 2

Screenshot 2024-02-01 at 14.18.20.png

Remove the four anti-theft Torx screws using the Torx T10 key. Keep all for screws, they will be needed later on.



Step 3

Screenshot 2024-02-01 at 14.18.29.png

Use your thumbs in the eat post opening to push the Smart Cartridge out of the bike frame. This may require some force.



Step 4

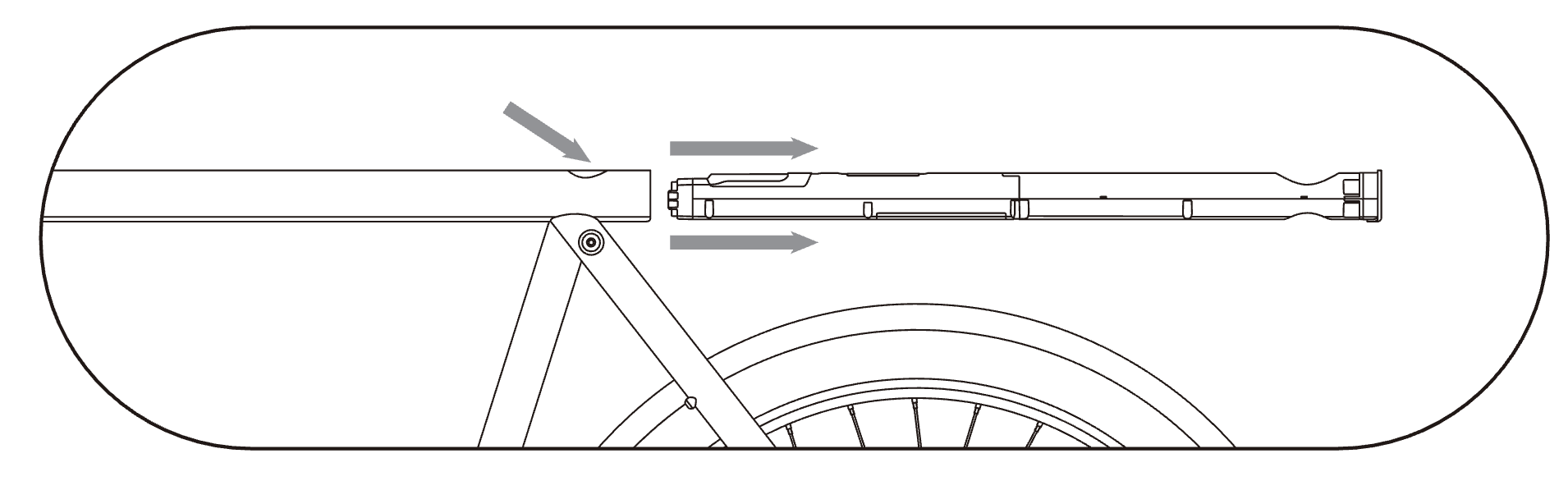

Screenshot 2024-02-01 at 14.18.37.png

Gently slide the new Smart Cartridge into the top tube. Make sure the Smart Cartridge is instered all the way into the top tube.



Step 5

Screenshot 2024-02-01 at 14.18.43.png

Replace and tighten the four Torx screws using the anti-theft Torx T10 key.



Step 6

Screenshot 2024-02-01 at 14.18.51.png

Place the seat post and saddle at your desired height and tighten the anti-theft Torx screw using the Torx T30 key.



Step 7

Please contact our customer support and request to connect the Smart Cartridge to the new user.
