Required Tools
- Rear Carrier
- M5 x 20mm (1x)
- M5 x 16mm (2x)
- Allen key #4
- Wrench
Step 1
Tighten the two 16 mm lower screws. Make sure the carrier stays are on the inside of the rear dropouts.
Step2

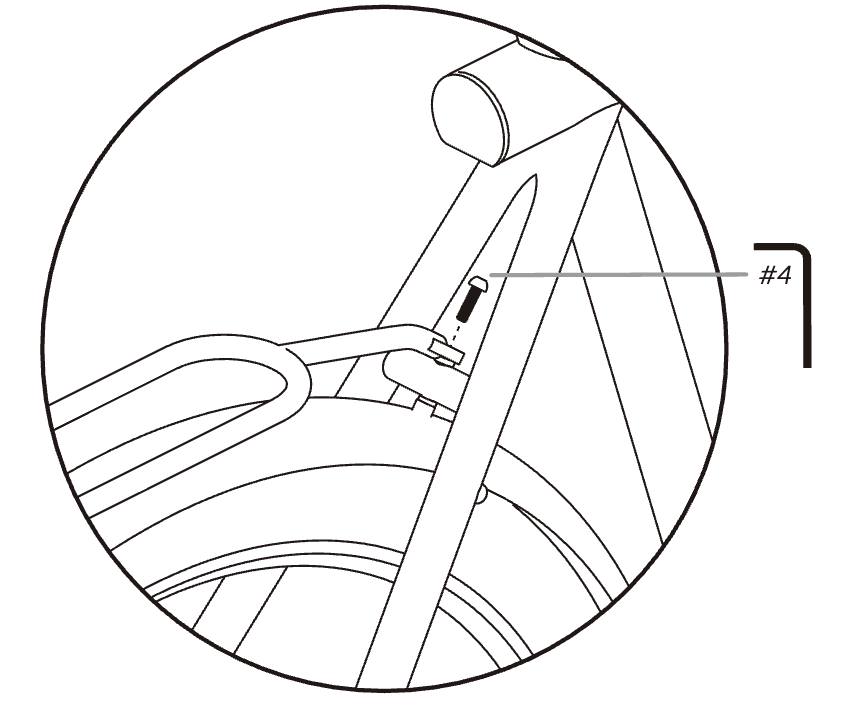

Tighten the 20mm top screw.
Step 3

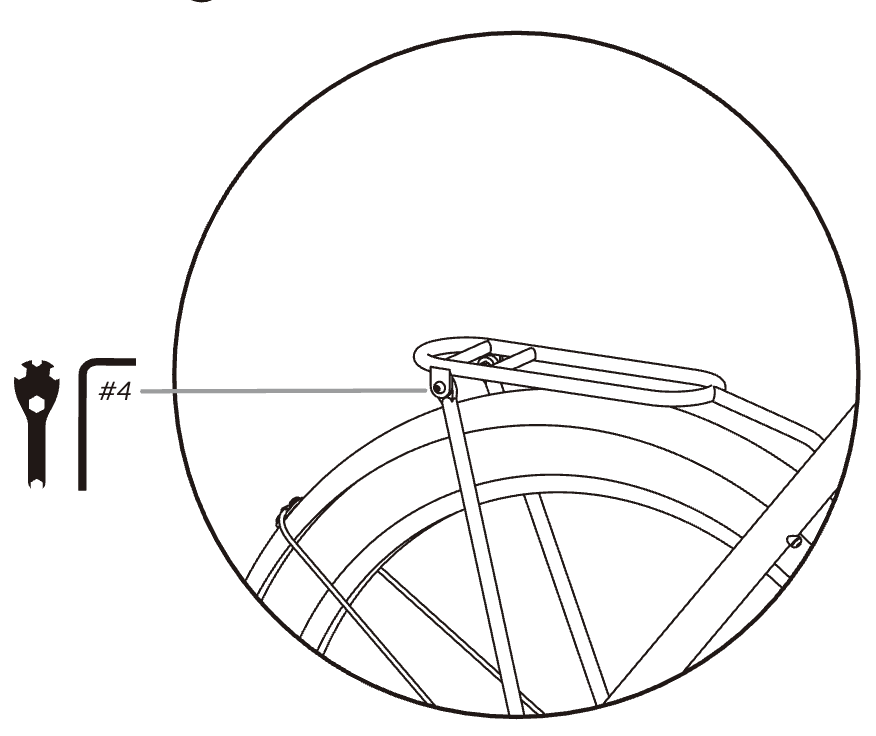

Tighten the carrier stay bolts.
